Catalogue

HM-0461-L

LAD Light SYSTEM

In general, vessels such as Pilot Vessels, Fishing Boats and Work Boats have a tendency to capsize rather than sink vertically like SOLAS-size ships. When a vessel capsizes, LSA might not be released as intended until the vessel is upside-down, increasing the risk of entanglement in the vessel’s superstructure.
The List-Angle Detection (LAD) Control Unit can activate an ERU at a predefined list angle or by the push of a button. The HM-0461-L is a complete kit for installation with an automatic activation list of 80 deg.

24V emergency power.
IP66 class.  If mounted outside of bridge or wheel-house the release switch shall be mounted in a weather-protected enclosure with minimum IP67.

,

Description

  • Approvals:H20 according to SOLAS
  • Product Specification:Complete Kit, Plug and Play
  • Outputs:1
  • Release Depth:1.5-4m and Automatic at List Angle
Notes:

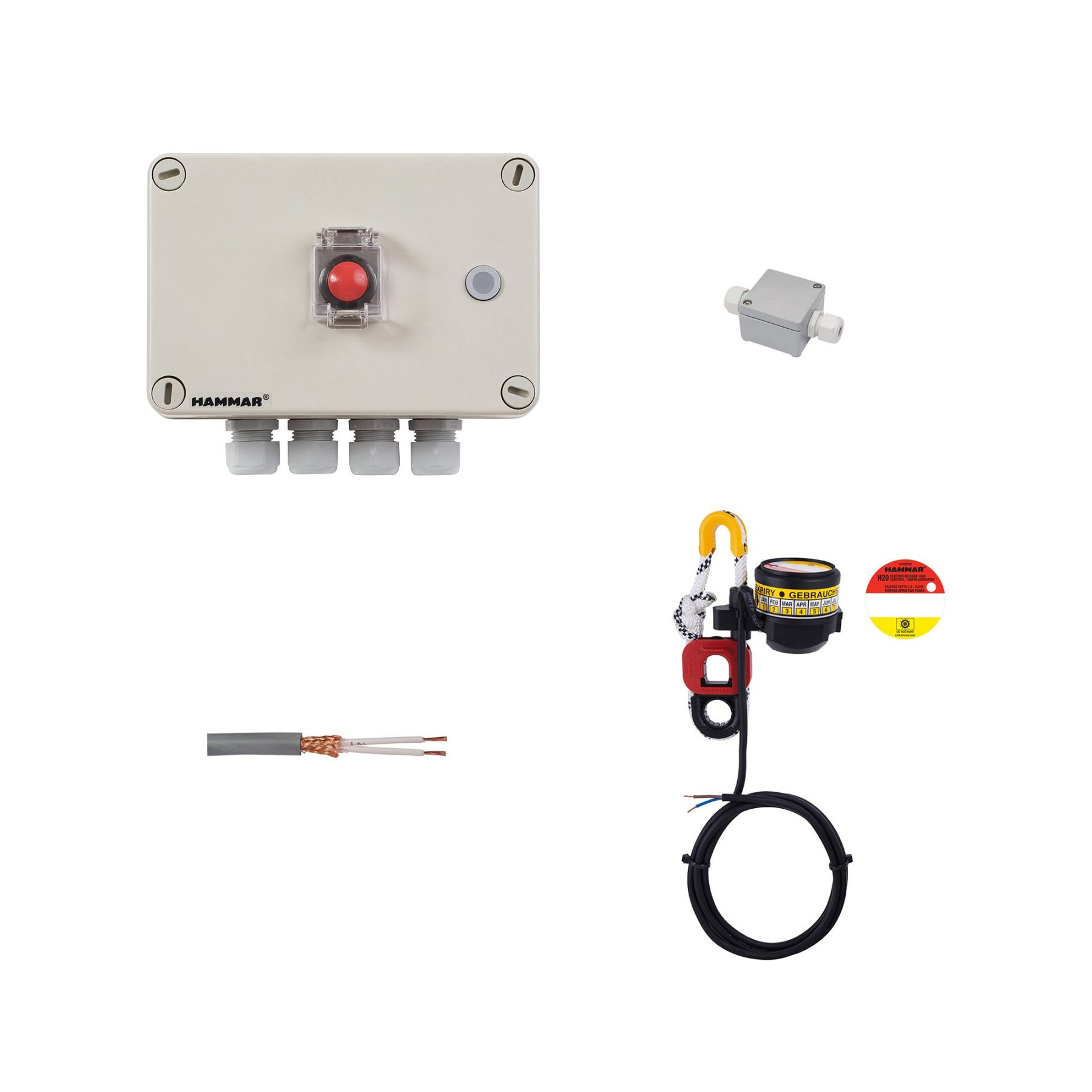

Includes:
Control Unit - LAD
10 m Cable (Marine Grade Shielded Type, 2x75mm2)
Connector Box
H20 ERU - HM-0414
