Product Specification:for electric/water release flush mount Release Button
Backup Battery:No
Release Depth:1,5-4m
Weight:18kgkg
Notes:

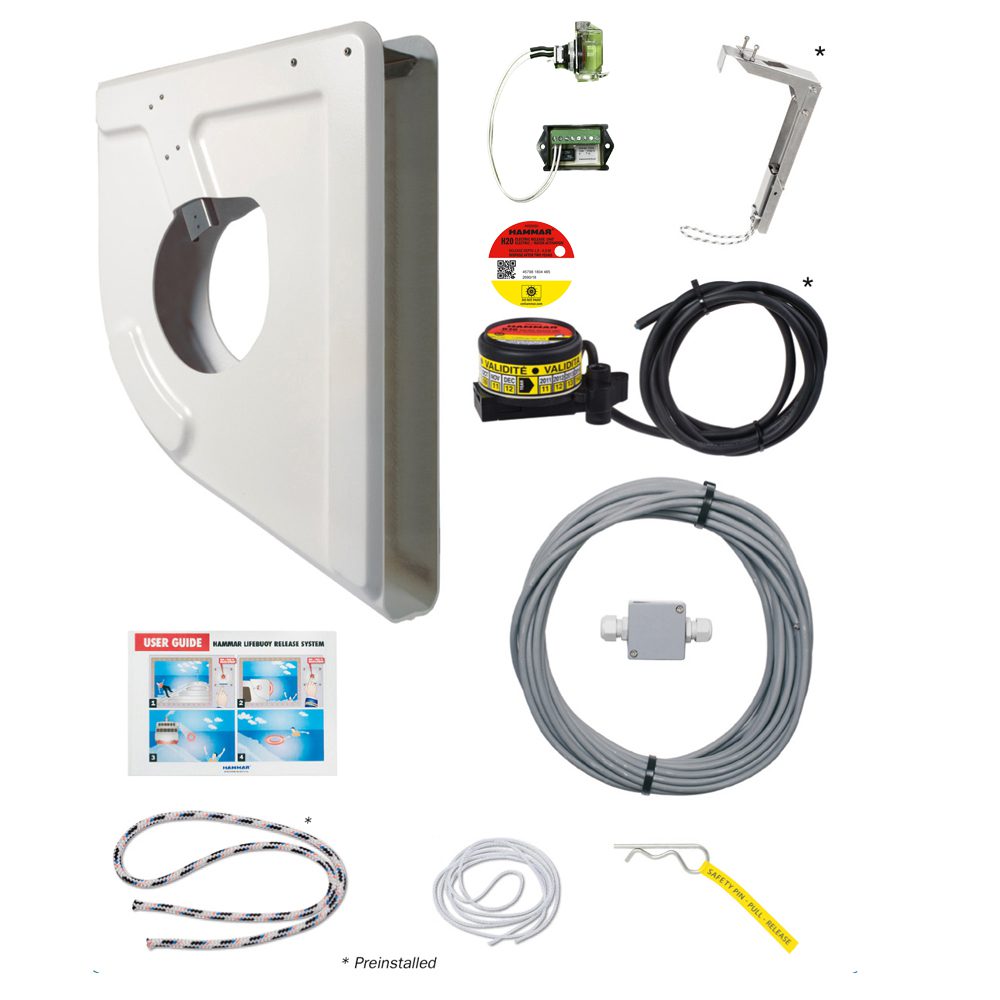

Included in the kit:

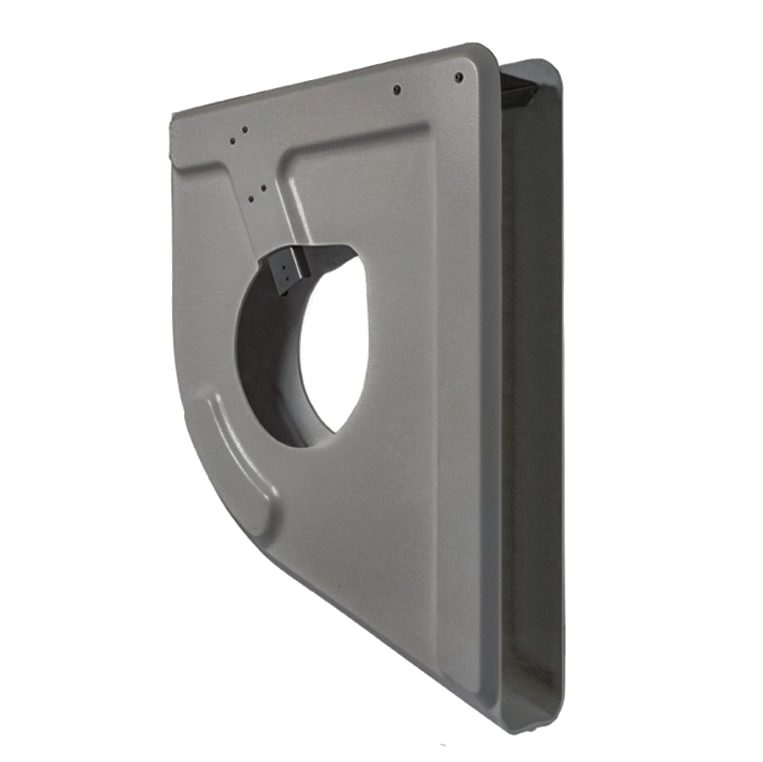

* One GRP holder with pre-installed metal holder.

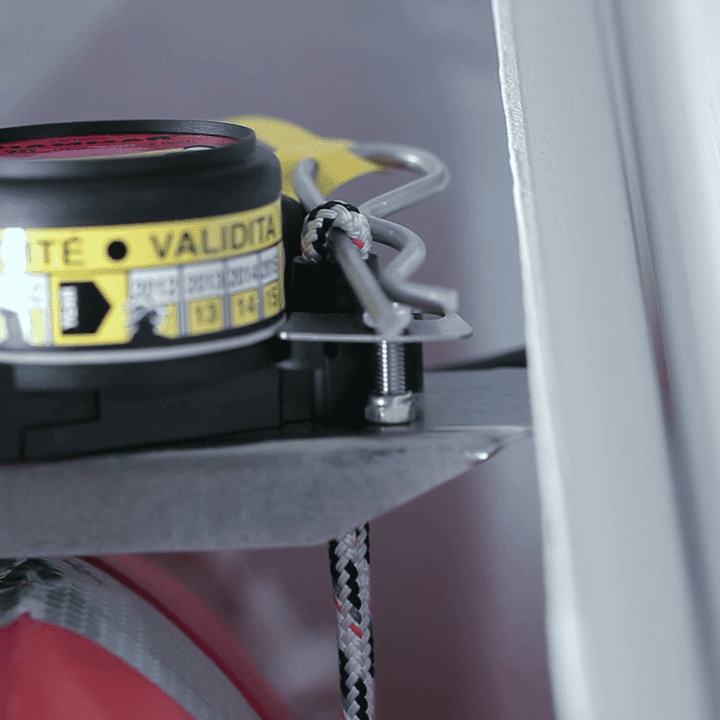

* One ERU (electric remote unit) with cord pre-installed on the metal holder. Cable length 1,5m
* One Release Switch push button and consist of a push-button module and an electronic switch module, supplied separately.
* One connector box in marine grade plastic, IP66 class. Colour: steel grey. Maximum diameter for cable 12mm.
* 20 meters of grey cable 2 x 0,75 mm2, diameter 8mm, other lengths available upon request.
* One manual safety pin in stainless steel
* One pilot line for loading the lifebuoy
* Installation manual, user guide and test of the LifeBuoy System document.
For measurements please ask for drawings.
Not supplied in the kit from Hammar:
LifeBuoy (any SOLAS lifebuoy will fit the GRP holder)
Mounting bolts and fittings for installation on-board.
Rearming kit HM-0630
*GRP-Holder may be made available in Navy Grey upon request
