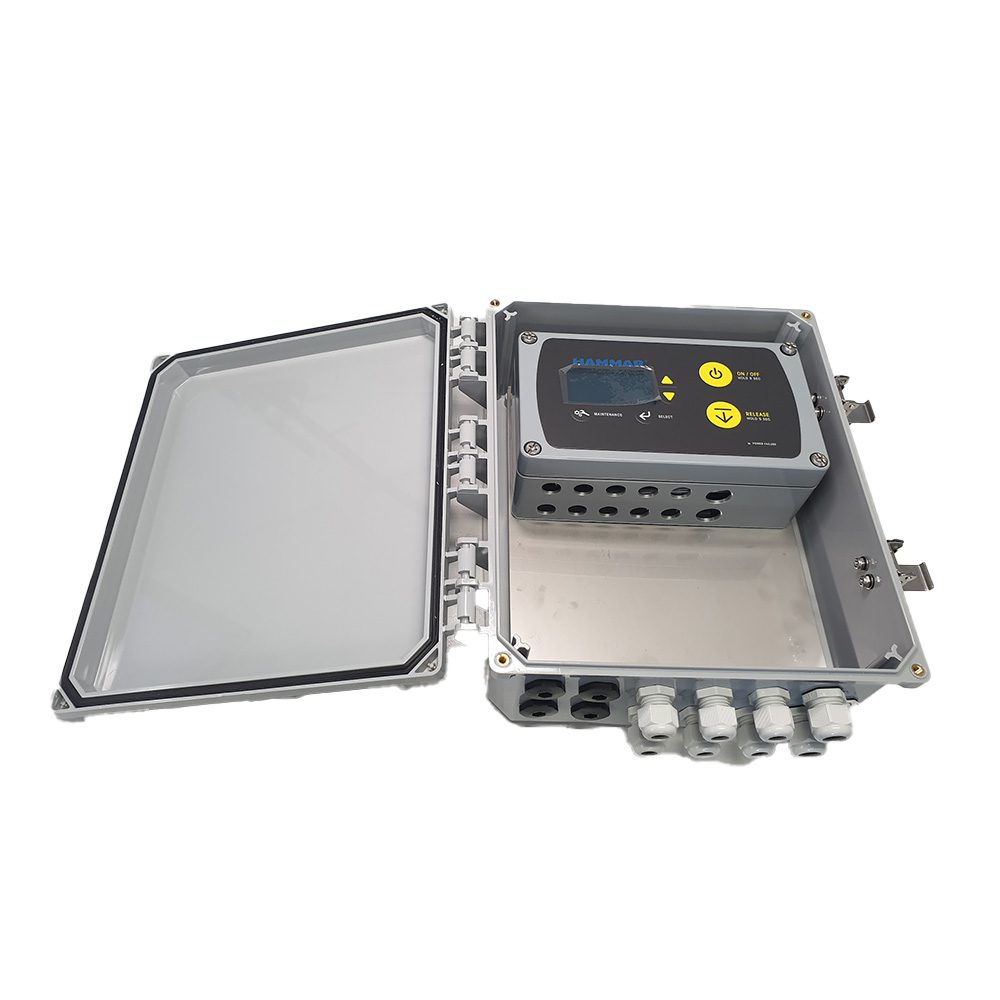

CP2 with Protective Enclosure

Incl. complete set of cable glands and Ground Connection Device.

Control Panel 2 is a Control Unit in an Electronic Remote Release System, it is Hammar’s most advanced Control Unit with customized solutions for the activation of several lifesaving appliances, evacuation systems or loads. The Unit is capable of handling up to 10 Release Units (ERU) and 2 Input Relays and another 2 ERUs + 4 input sensors with small modifications. A Control Panel 2 can play a centralized role in controlled, safe and fast evacuation on a vessel. CP2 is programmed on delivery based on the set-up on the individual vessel and can activate ERUs individually or in a predefined sequence differentiated in time. It is a self-checking system and will bring no attention until awoken from its idle state or an error is detected. The CP2 may be used to open hatches or close fire doors. The HM-0710 has a rechargeable backup battery (HM-0725) in case of power failure on the ship’s 24V DC emergency power supply.
This version is supplied in a protective enclosure



  • Product Specification:Left incl. HM-0772 and HM-0710
  • Backup Battery:Up to 20h, Rechargable
  • Dimensions:305 (W) x 254 (H) x 102 (D) mm
  • Inputs:2+4
  • Outputs:10+2
  • Weight:3.1kg
